Show us what's mounted in your cab!

[wonderbanana]

I've no idea why but I've become quite fascinated by how people mount PCB's and other kit in their cabs.

So how about taking a pic of what's in your cab right now and posting it up here?

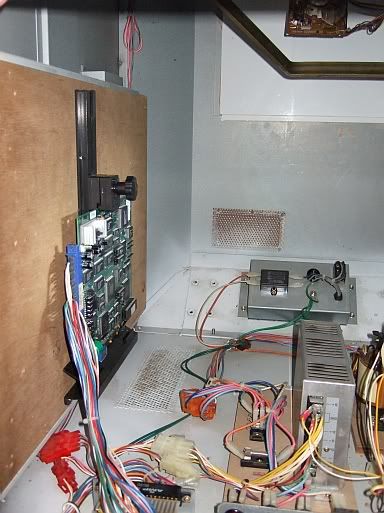

Atm I've only got my S-TV board in, mounted on (what I assume) is the rear of the mounting board since it won't fit the other way due to the cartridge.

I'm hoping my Naomi mobo will arrive on Monday or Tuesday although I will be gutted to take Silvergun out as I'd like to eep playing it along with Zero Gunner 2



Completely OT but in regards to the pic above; is it safe to put stuff on top of the PSU cover as seen in the pic?

[thomj]

I need another pcb holder thing for my candy 18. the pcb's just on the bottom of the cab on a bit of foam :/

no mounting boards in the naomis either

I'll get dimensions for those soon and whip some up...

[FrancoB]

I have a similar mounting board in my NAC, I need to get one of those adjustable PCB holders for it really, I just have Bomb Jack screwed into it at the moment, I have to lie other PCBs on a shockbox outside of the cab

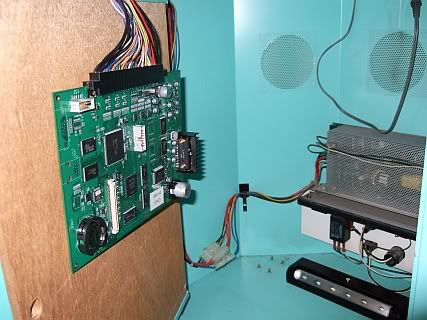

This is what I have in my Naomi:



More pics/info [here]

[tart31]

, how are you finding ds kern?

[emphatic]

In before the follow-up post by kernow:

DisplayCollapse view

15kHz cabinet:


24kHz cabinet:

[emphatic]

see what I mean!

I couldn't live with them like that.

Yeah, I totally understand. I never open my cabinet though, so it doesn't bother me.

[wonderbanana]

I'm surprised there's no beer stashed away in yours Emph

@Franco - love the custom PCB holder - surely there would be a market for something like that?

[Casey120]

In the Aero :

ESPGaluda



The Cute :



DeathSmiles

[thechop]

Too much room in some of these fill it up with a Cave sandwich

[Casey120]

The multi Cave , I like it

[wonderbanana]

Too much room in some of these fill it up with a Cave sandwich

[Noob alert]

Whats that ribbon cable connecting the boards?

[/Noob alert]

[thechop]

Too much room in some of these fill it up with a Cave sandwich

[Noob alert]

Whats that ribbon cable connecting the boards?

[/Noob alert]

Its a Clay Cowgill multi jamma pcb, you connect your jamma harness to the closest PCB you can see in the pic and you can run up to 8 Jamma boards off it, each needs its own ribbon cable and connector.Just a button to change game.

[wonderbanana]

Too much room in some of these fill it up with a Cave sandwich

[Noob alert]

Whats that ribbon cable connecting the boards?

[/Noob alert]

Its a Clay Cowgill multi jamma pcb, you connect your jamma harness to the closest PCB you can see in the pic and you can run up to 8 Jamma boards off it, each needs its own ribbon cable and connector.Just a button to change game.

Cool - not seen one of those before

[subbie]

I wonder if I should contribute.

Right now my cab consist of a Namco 246->Jamma PCB and that's all. I've been too lazy to take my 246b back to the office (too big to carry, need to hit up a cab).

[thomj]

[Akuma]

[voltronbadass]

[wonderbanana]

I have not got a clue what some of these are

Will post up my latest later; it's a bit of a mess...

[thomj]

what cab is the playchoice in

[Rossyra]
