I swapped my chassis for a tri-sync, but .....

[grantspain]

hehehe....

well messing with pots does get you somewhere, sorry about the confusion.

]

Ajusting pots wont fix this problem, Replacing one will and that would void the warranty, So just in case dont

LOL..

sorry i even posted here, I'll just keep browsing

don't worry mate,your input is well appreciated-keep posting .the sign of a good forum is when we can have differing opinions

[poolchamp]

hehehe....

well messing with pots does get you somewhere, sorry about the confusion.

]

Ajusting pots wont fix this problem, Replacing one will and that would void the warranty, So just in case dont

LOL..

sorry i even posted here, I'll just keep browsing

AH mt8 dont take it the wrong way your advice is sound but if it was second hand no problem ,but as its new kinda better to return it ,And please post away the more help the better for everybody

[ckong]

sorry i even posted here, I'll just keep browsing

No, please keep posting. It will always be appreciated. Oh, and what's the name of the game?

[poolchamp]

sorry i even posted here, I'll just keep browsing

No, please keep posting. It will always be appreciated. Oh, and what's the name of the game?

P.G.M'S Demon Front Mr Kong

[ckong]

UPDATE!!

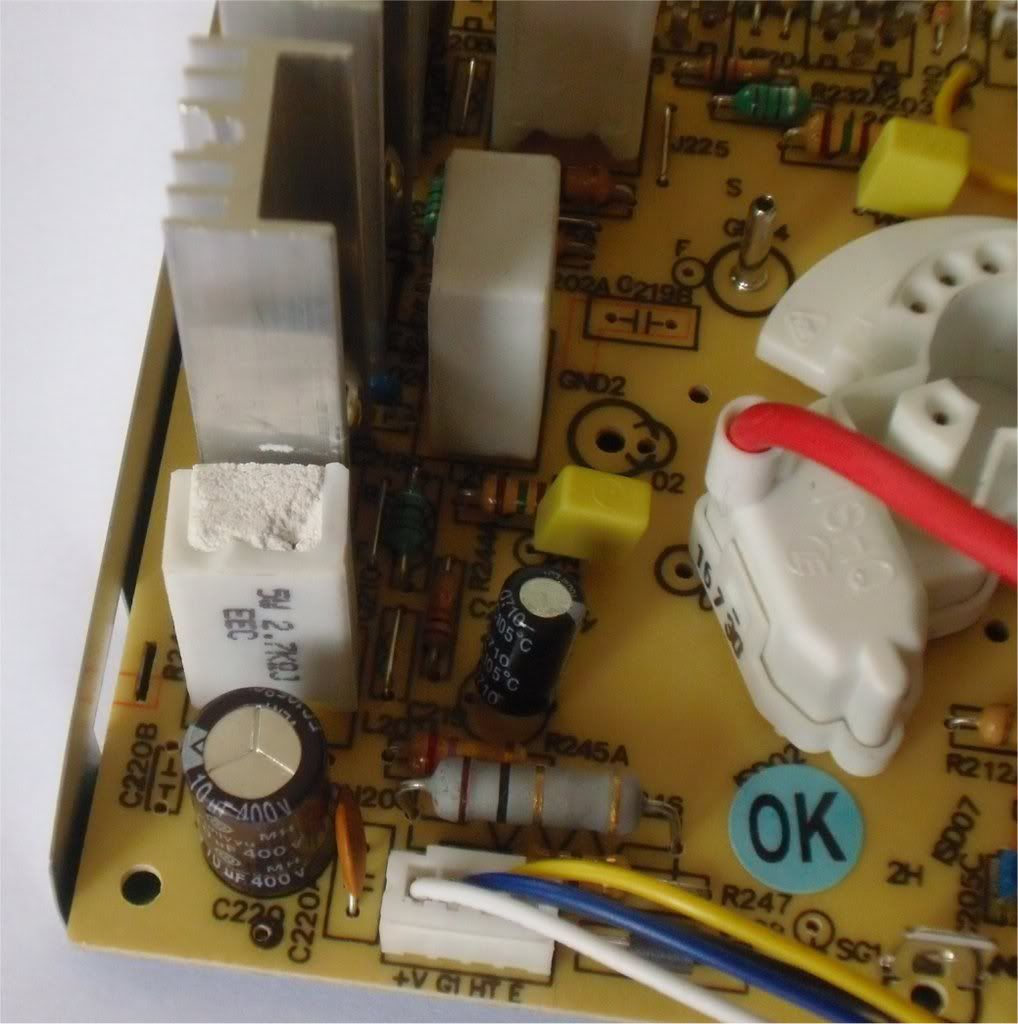

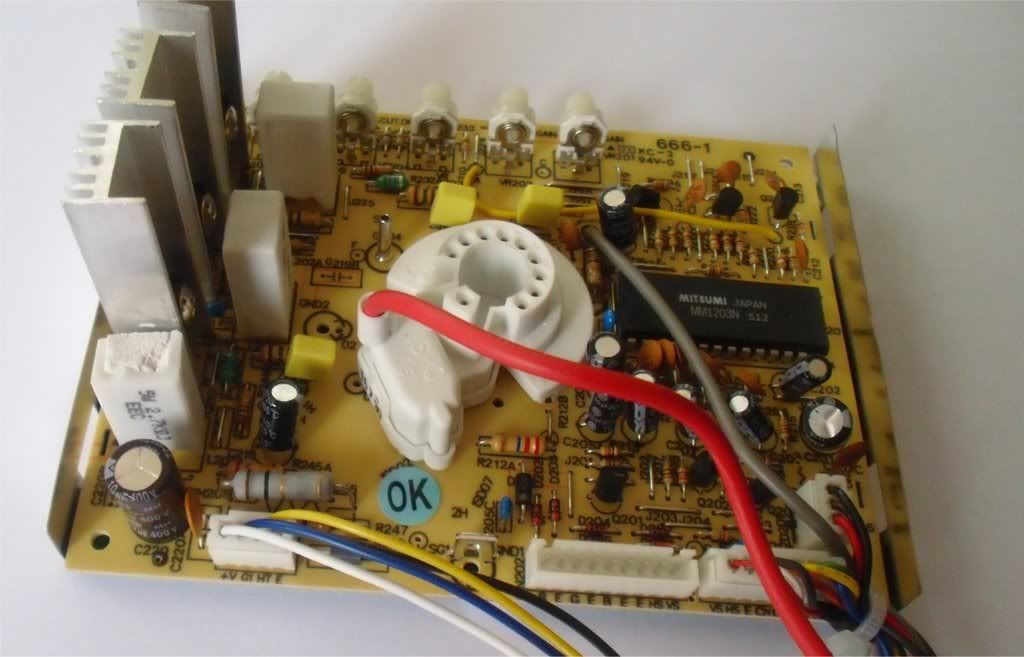

Before I went to put the faulty chassis back in the box, I decided to examine it one more time, now including the neck board. And there I noticed a damaged part:





I don't know what it is, i don't know what it does, I don't know how to check the proper working of it, but I do no that it doesn't look as it should do. Could this be the cause of the problem?

PS: do you guys see the OK sticker? That's funny, isn't it?

[dmauro]

I just got my 3129A chassis in the mail yesterday, now I just need the cab . I guess I should take some pics and examine it carefully to make sure I don't have any bad parts before I try installing it.

[poolchamp]

UPDATE!!

Before I went to put the faulty chassis back in the box, I decided to examine it one more time, now including the neck board. And there I noticed a damaged part:


I don't know what it is, i don't know what it does, I don't know how to check the proper working of it, but I do no that it doesn't look as it should do. Could this be the cause of the problem?

PS: do you guys see the OK sticker? That's funny, isn't it?

Ok it looks over heated but is the top bit around anywhere in cab otherwise it happened before you got it and you need to still send it back ,If she popped after and you have top bit i might have a go with ya .Or again just send it back

[ckong]

Got an e-mail from Excellentcom in which they asked me to return the chassis in exchange of a new one. Will do.

[Ordyne]

those chassis have a very poor quality control and are very prone to dry solder joints,my bet is that there is an unsoldered component on the vertical output section-either aroung the tda 1745 or from the flyback

you should carefully inspect the chassis for any suspect solder joints

The problem is Excellent wont even bother to test them before shipping! Nor do they know anything about them...

[dmauro]

Not to hijack the thread, but is there a guide on how to swap out the chassis in an MS8 or MS9 monitor? I saw one back at killer-cabs, but haven't found on here. I'm going to be doing this soon, and I'm going to need loads of photos with step by step instructions if I can't find live help.
