Naomi Sitdown - JAMMA converted

Post by tetsujin »

Well, here we are again, another Naomi restoration by me!

After a bit of a thought gathering process away from most things game related and doing other things in life I decided I missed the whole 'scene' of the arcade world.

The chasing, the collecting and the playing. So here I am back again :)

I started off looking for a Naomi but then had my heart set on another Astro. As I am the impatient type, I lasted a few days and got offered this Naomi cab off Spectre that was in mid project phase. Needed some TLC and thought I could do this while waiting for an Astro to come along :)

Picked it up on Thursday and before throwing it all back together I thought it deserved a clean, so out with the Power Bath (I use this on the shower and works a treat so thought I would try it here). and it did wonders! :D

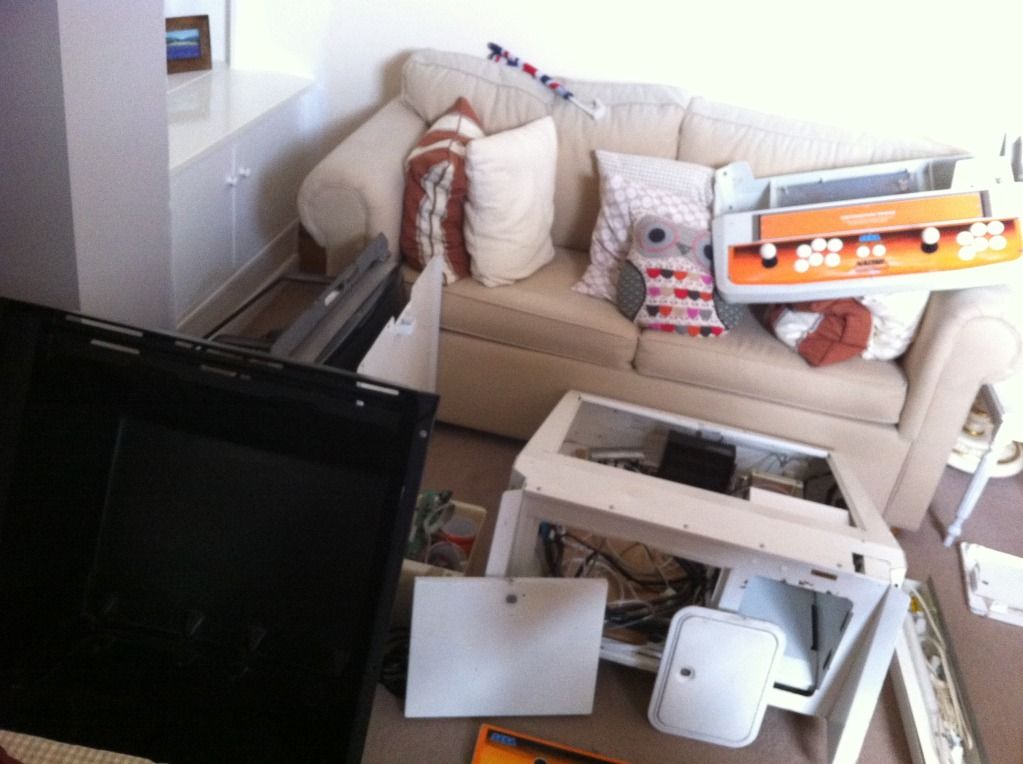

Back home...

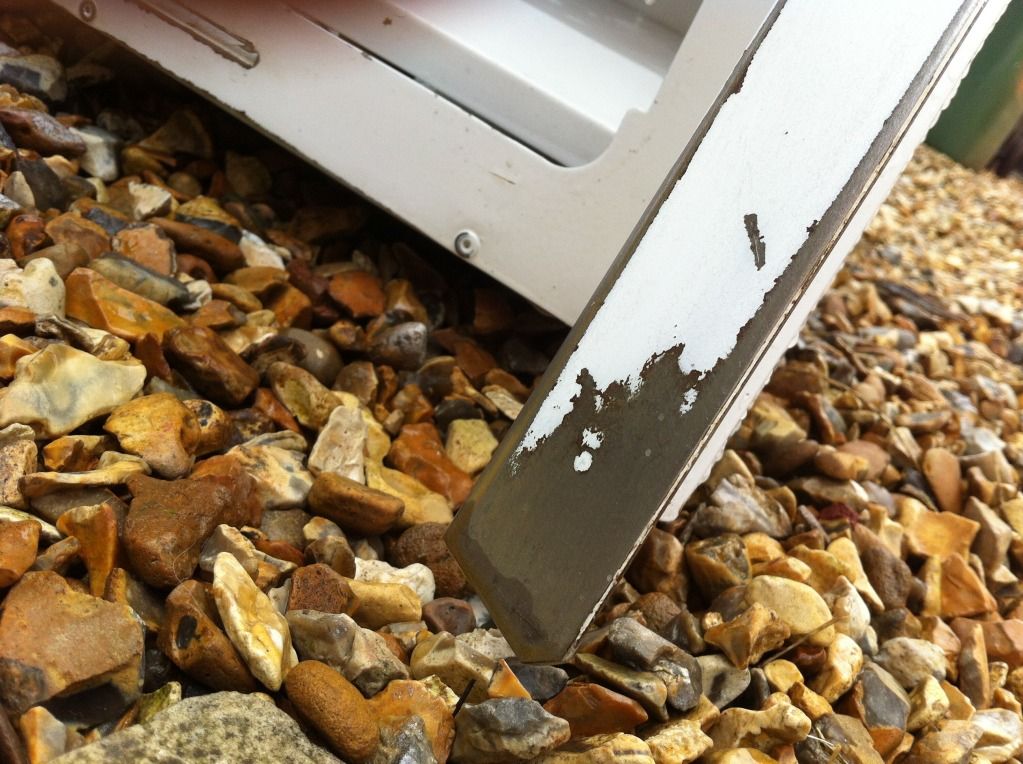

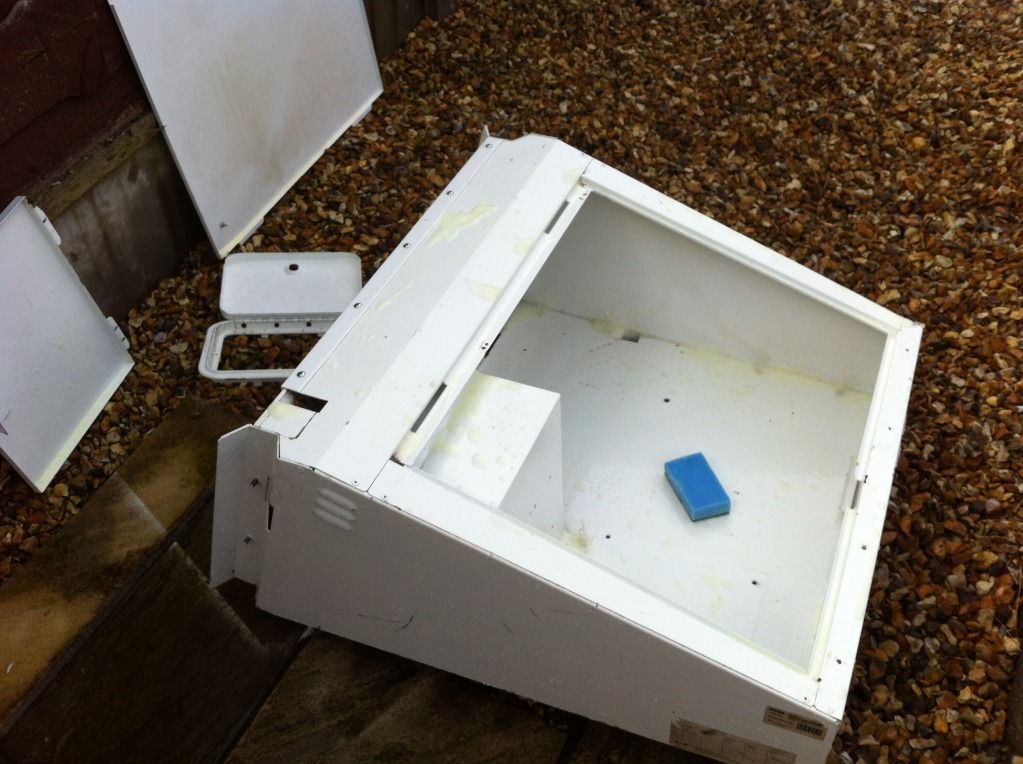

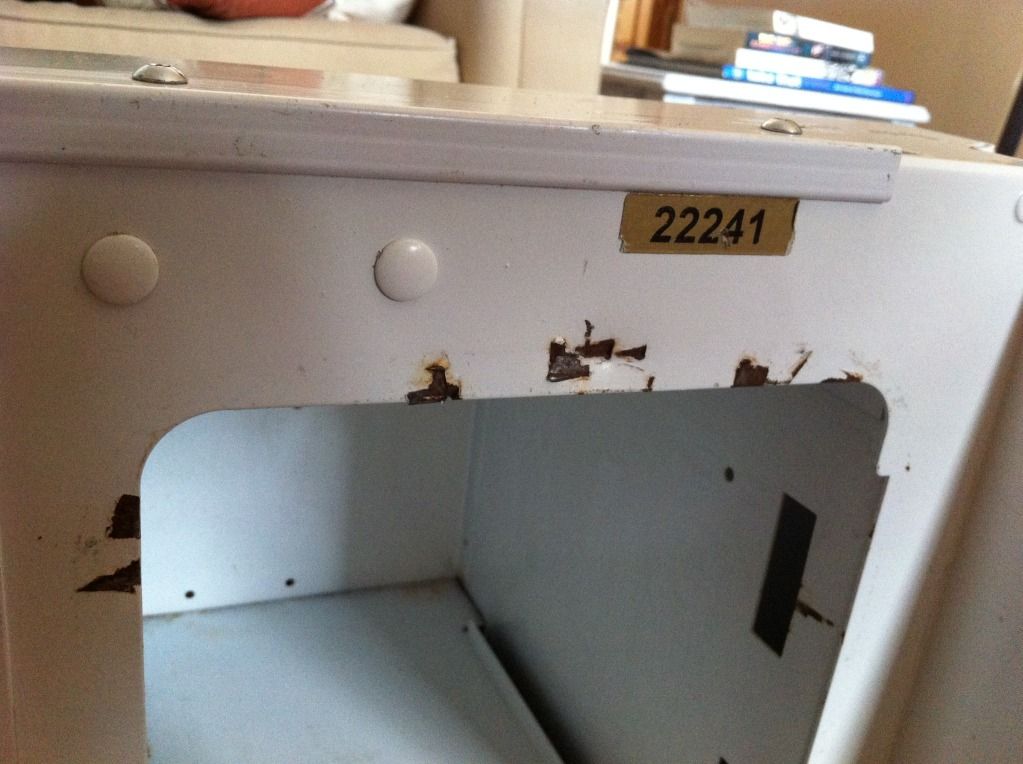

Gave it a good scrub with a dish pad and then got to work attacking the rusty base. Someone had also decided in the past to attack this with a screwdriver to try and steal all it monies but the damage as not too bad.

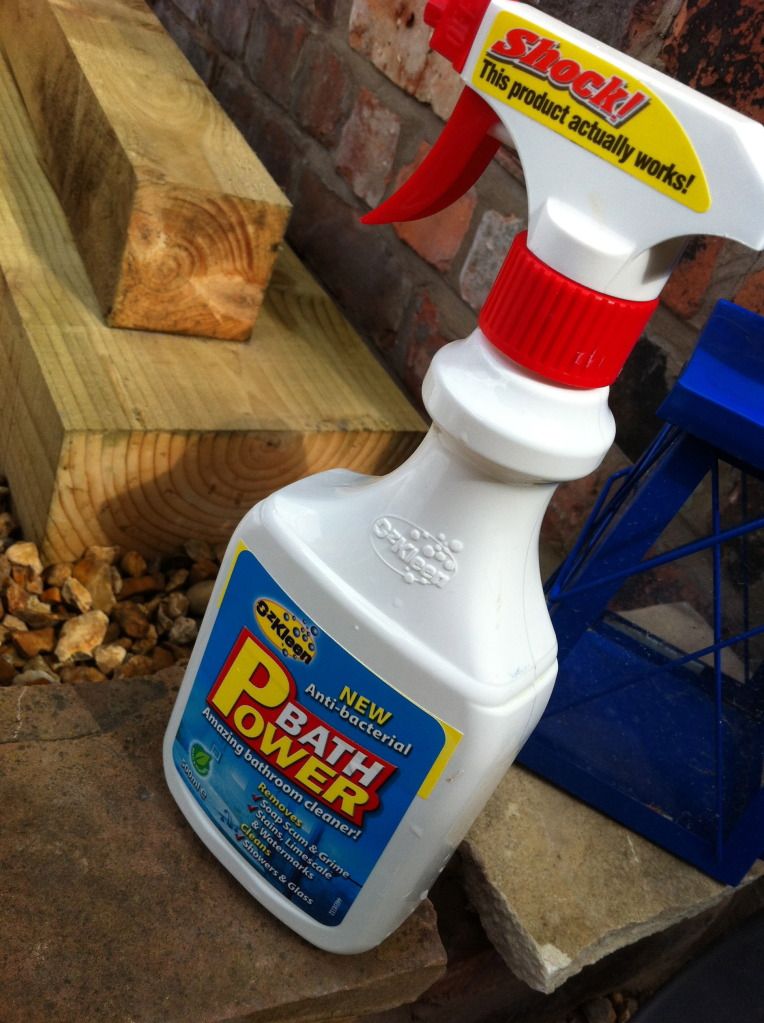

Power Bath...

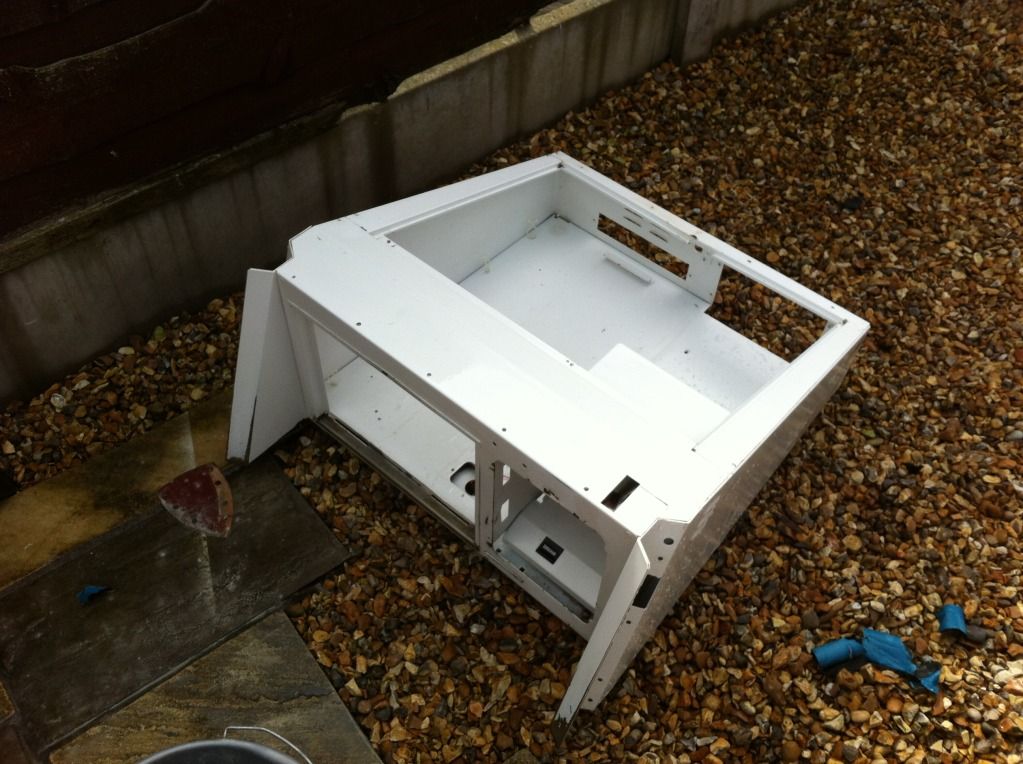

after a good clean all was good! :D

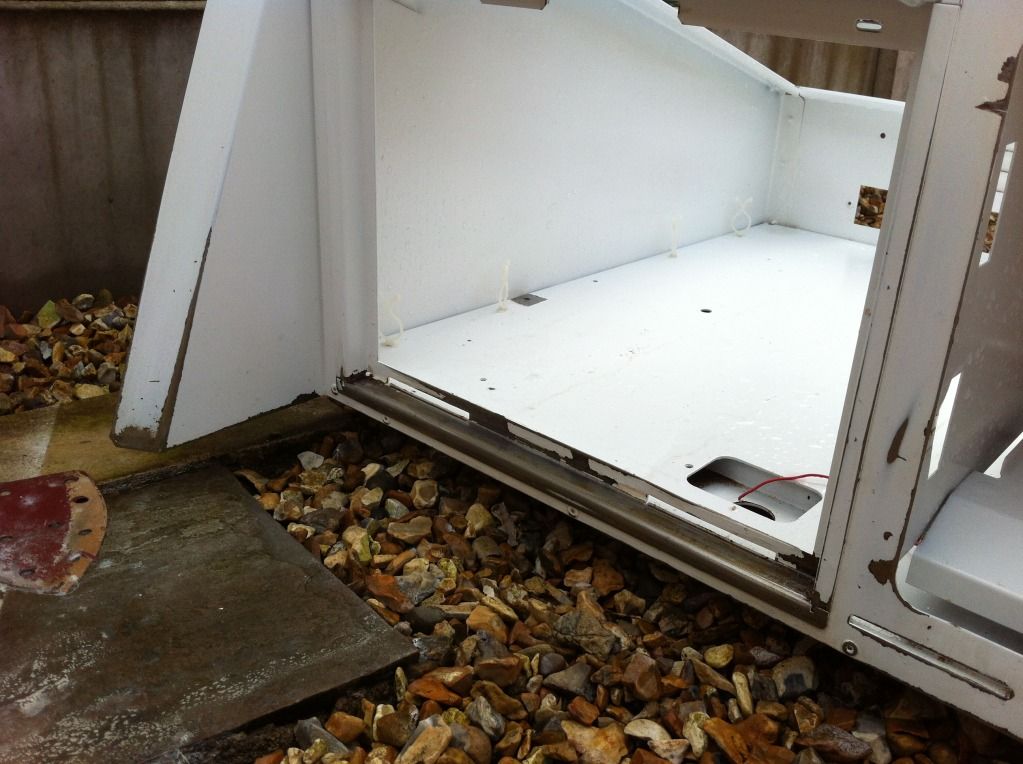

Started to get the rust away and down to bare metal so I could get a nice smooth and good surface to pain.

Rub down the paint...

I don’t have and 'painting pictures' as was just doing it rather than thinking about taking pictures.

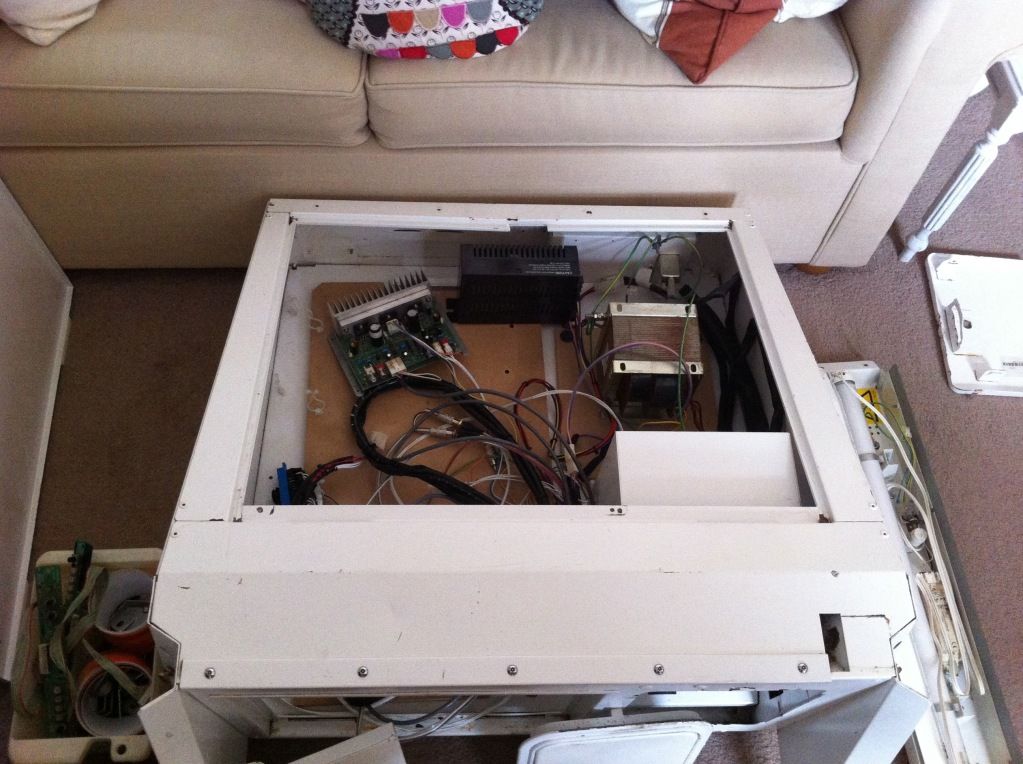

Gave all the parts on the cab a clean before they came up to the games lair.

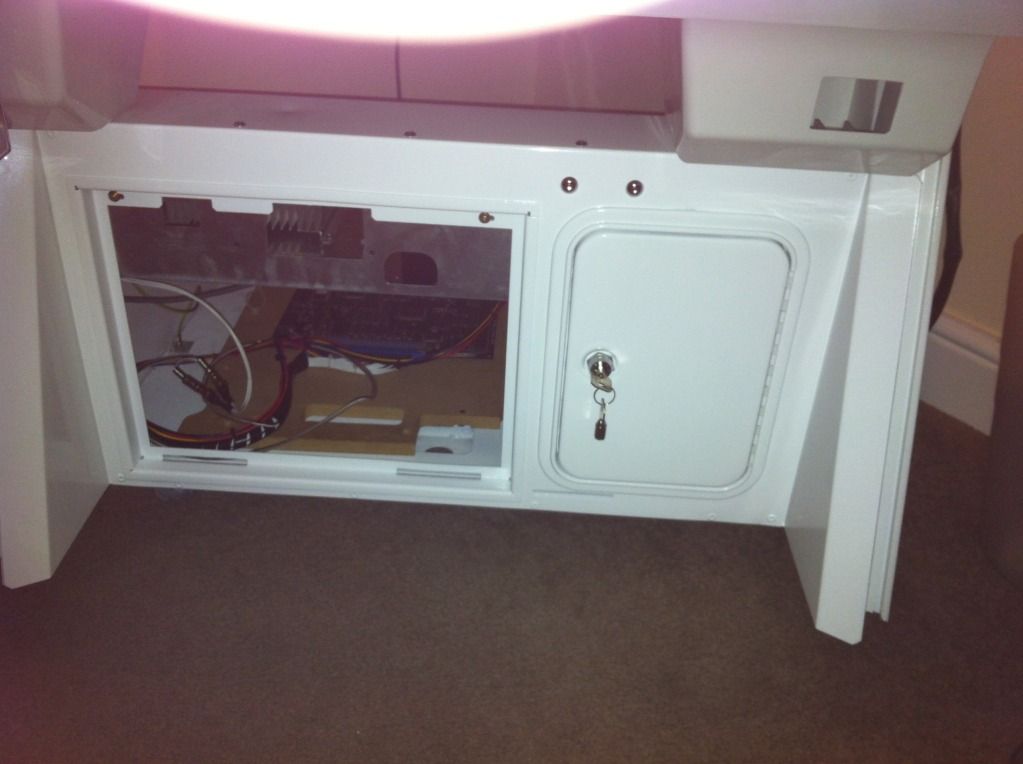

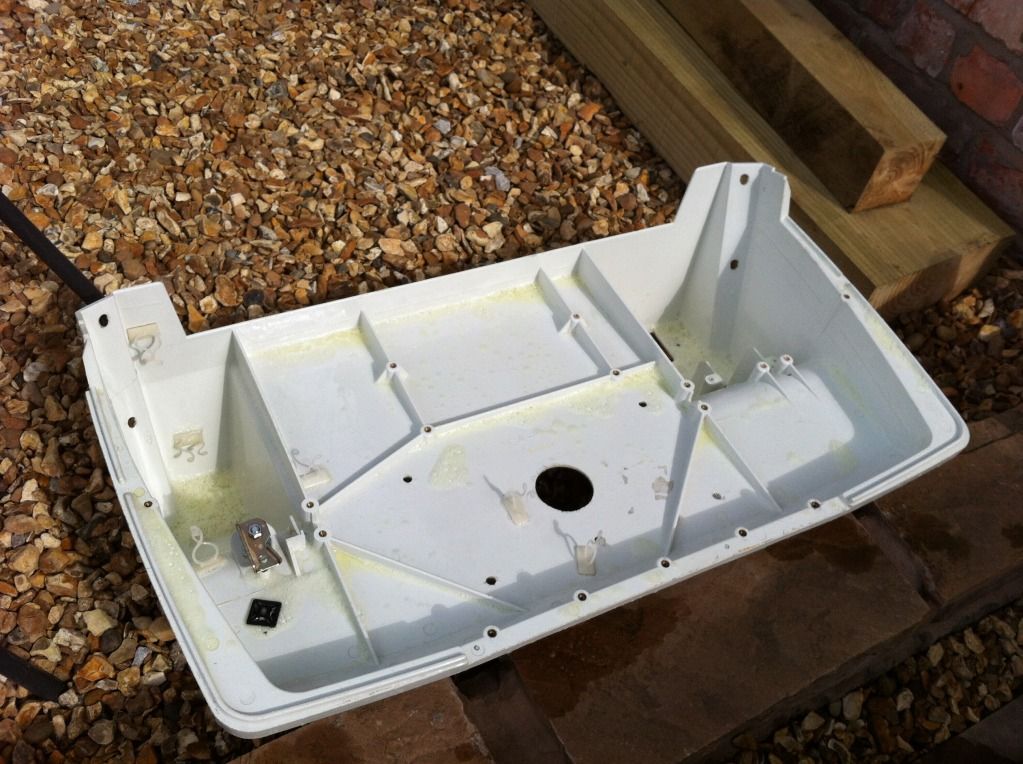

Only have this pic so far of the base all fitted. Looks great IMO.

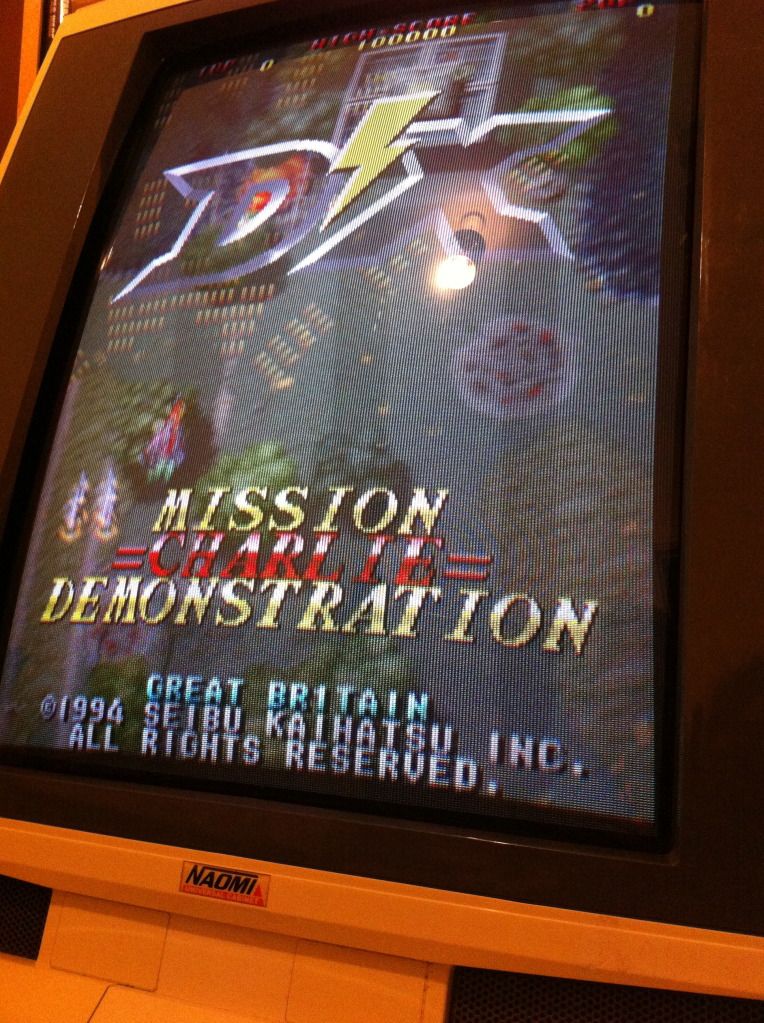

And had a sneaky play...

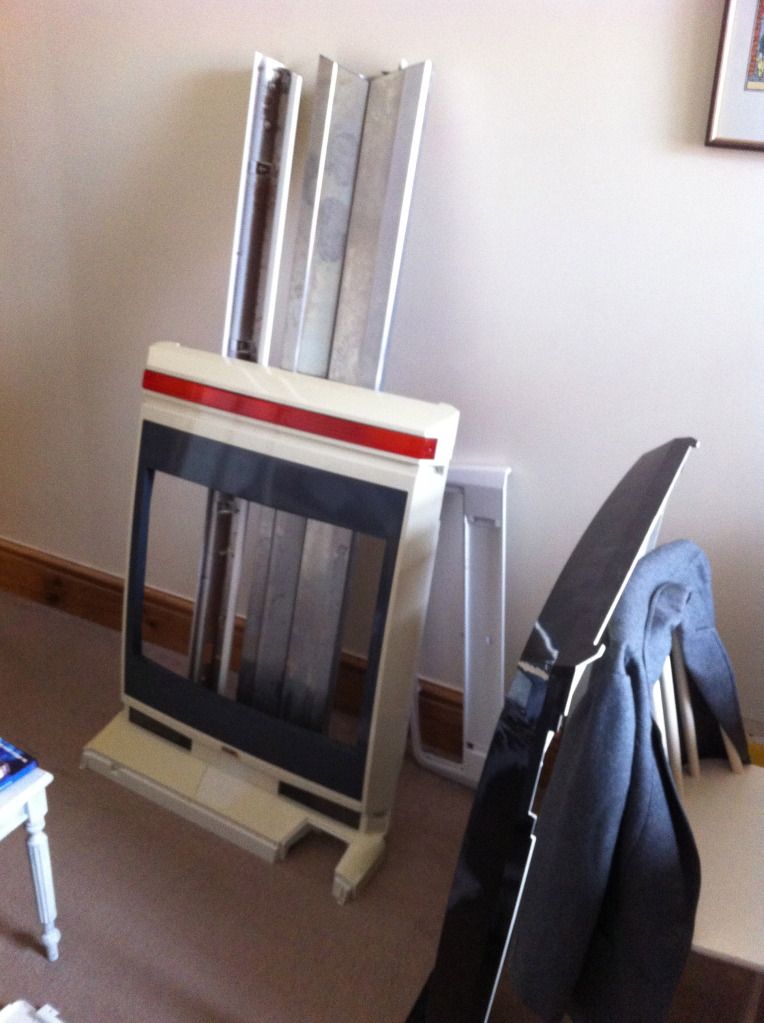

Will get some pictures of it all complete once its ready as at the moment the control panel and plastic surround are yellowed and in need of some love.

Also Nitromoor’s attacked the sides and started to sand them back to Japanese style leg covers.


more picture soon... :)
LOL Cats... stupid cats
User avatar
crunchywasp
stompin' an' jumpin'
Posts: 8104
Joined: February 10th, 2012, 2:51 pm
Location: Northern Ireland
eBay: crunchywasp
Initials: MAK

Re: Naomi Sitdown - JAMMA converted

Post by crunchywasp »

:clap: nice get on the cab and top notch work on the base :thumbup: 8-) Looking great so far and I'm looking forward to watching your progress :awe:
User avatar
sombetzki
Posts: 471
Joined: May 11th, 2010, 10:29 am
Location: The Netherlands
Initials: AAS

Re: Naomi Sitdown - JAMMA converted

Post by sombetzki »

Looking great indeed! Is the screen converted to 15 kHz?
Follow me!
User avatar
tetsujin
Hello, I say
Posts: 1949
Joined: September 8th, 2008, 4:33 pm
Location: Cheshire
eBay: kukki_86
Initials: AC.

Re: Naomi Sitdown - JAMMA converted

Post by tetsujin »

Cheers Mark xxx

Im not sure on the monitor but its defo just a 15k monitor and has a MS9 nanao chassis but not the Tosiba tube so the curve is a bit out - think similar to the ones in a Egret 2. :) Obv not the original Naomi monitor. ;)
LOL Cats... stupid cats
User avatar
crunchywasp
stompin' an' jumpin'
Posts: 8104
Joined: February 10th, 2012, 2:51 pm
Location: Northern Ireland
eBay: crunchywasp
Initials: MAK

Re: Naomi Sitdown - JAMMA converted

Post by crunchywasp »

Aww kisses. Thanks x :whoopsie:
User avatar
emphatic
Breastfeeds when required
Posts: 5909
Joined: April 7th, 2009, 4:14 pm
Location: Alingsås, Sweden
eBay: jorgen_sjolander
Initials: JOR

Re: Naomi Sitdown - JAMMA converted

Post by emphatic »

Lookin' great so far!
User avatar
sombetzki
Posts: 471
Joined: May 11th, 2010, 10:29 am
Location: The Netherlands
Initials: AAS

Re: Naomi Sitdown - JAMMA converted

Post by sombetzki »

Ah, different monitor... Is it easy to change a chassis? Would love to convert my Naomi monitor to 15 khz.
Do you also have Franco's wiring fitted for the jamma side of things?
Follow me!
User avatar
tetsujin
Hello, I say
Posts: 1949
Joined: September 8th, 2008, 4:33 pm
Location: Cheshire
eBay: kukki_86
Initials: AC.

Re: Naomi Sitdown - JAMMA converted

Post by tetsujin »

Im sure it is but I didnt actually change the chassis on this, it had a monitor swap so this must of been out of another cab etc.

:)
LOL Cats... stupid cats
User avatar
Spectre
By Spectre
Posts: 1694
Joined: January 22nd, 2009, 5:42 pm
Location: Suffolk, UK
eBay: spectre-uk
Initials: JIM

Re: Naomi Sitdown - JAMMA converted

Post by Spectre »

Nice work on the base, looks miles better :thumbup:
User avatar
denson
Please Continue...
Posts: 517
Joined: February 22nd, 2012, 10:36 am
Location: Norwich, Norfolk
eBay: chubba100

Re: Naomi Sitdown - JAMMA converted

Post by denson »

Looking great! and you wasted no time in getting it done either :clap: I look forward to seeing your progress :)
User avatar
tetsujin
Hello, I say
Posts: 1949
Joined: September 8th, 2008, 4:33 pm
Location: Cheshire
eBay: kukki_86
Initials: AC.

Re: Naomi Sitdown - JAMMA converted

Post by tetsujin »

Right! Another day, another update.

Wanted to start work on the upper monitor and control panel plastics as it was a lovely night with no wind so ideal for painting outside!

As you can see its black, and has a nasty, deep gouge in the top near the light. I have another white surround but that has damage on one of the bolt holes which although hidden when using the bolt covers wasn’t something I wanted to paint incase someone else wanted it and other than a bit yellow is ok.


The lower CP plastic has two screw holes either side of the instruction strip (I guess for attaching something in the past?) but these needed filling and painting to match the other plastic.


Using some car body filler, I went about filling the holes but before I did, I prepared the holes so they are flat and would take the filler and stick.

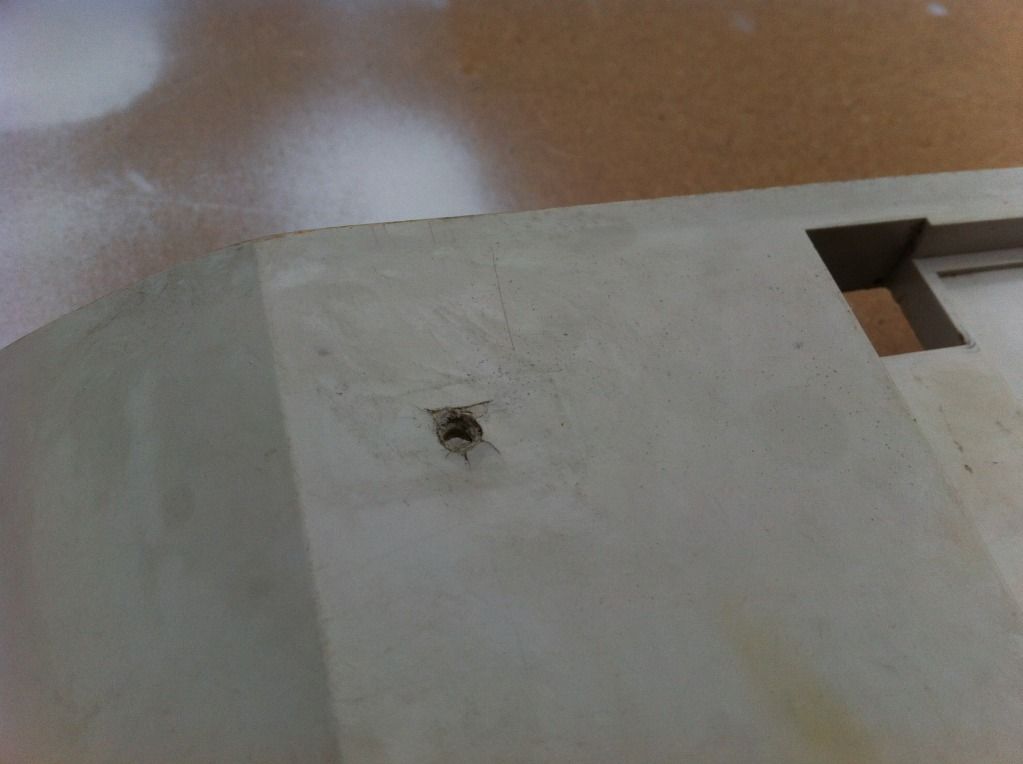

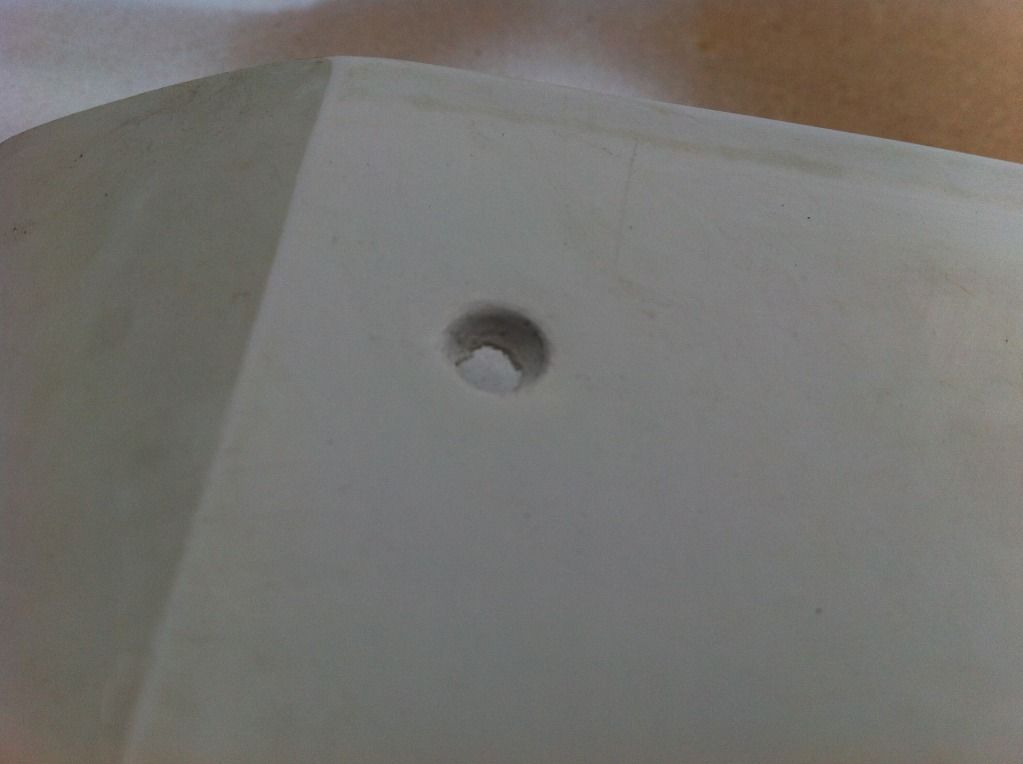

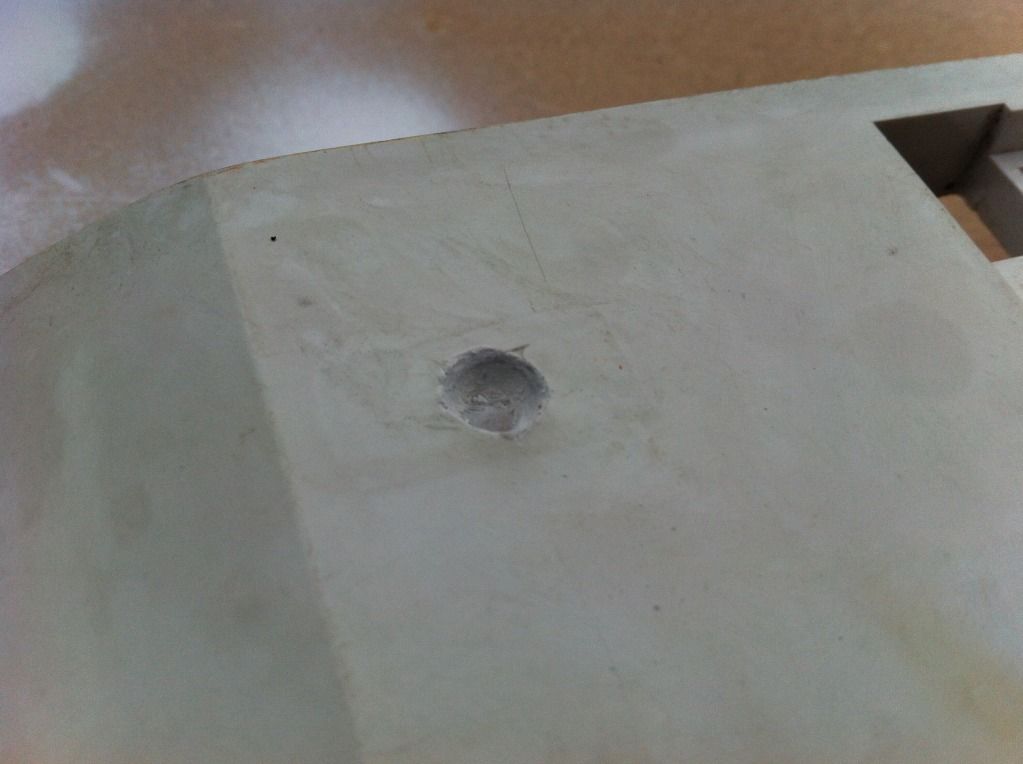

Started with counter sinking the holes…

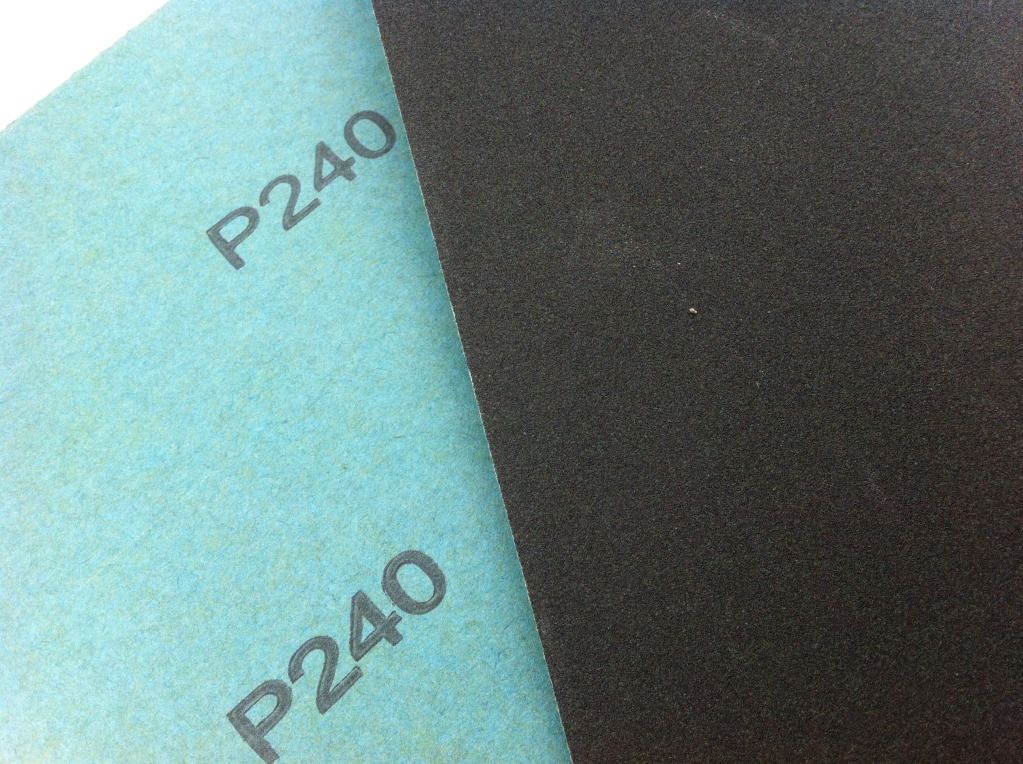

Then used some 240 grit paper…

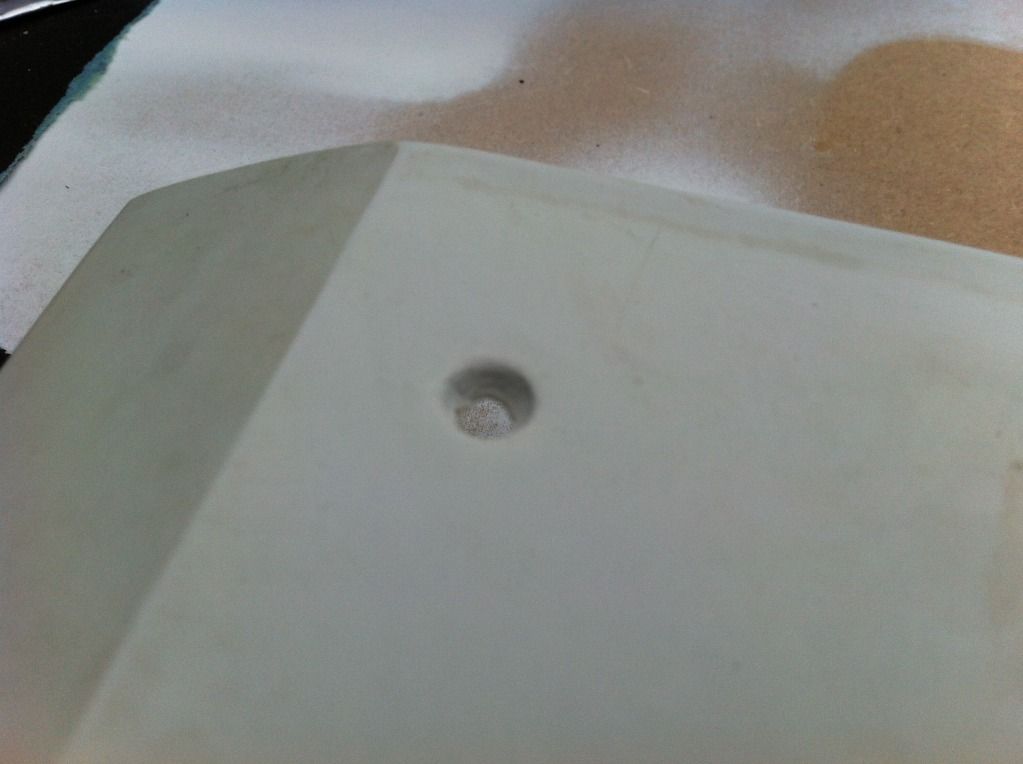

I made sure the inside of the hole and the top of the hold where flat and smooth with no sharp edges or anything that would hinder the filling.

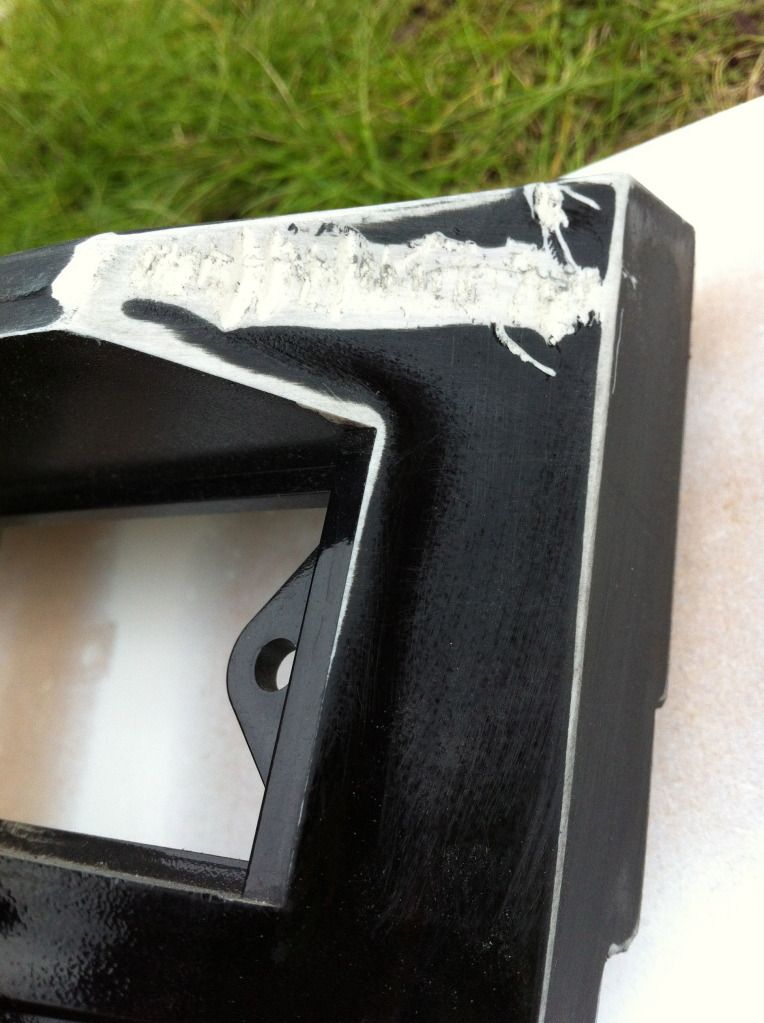

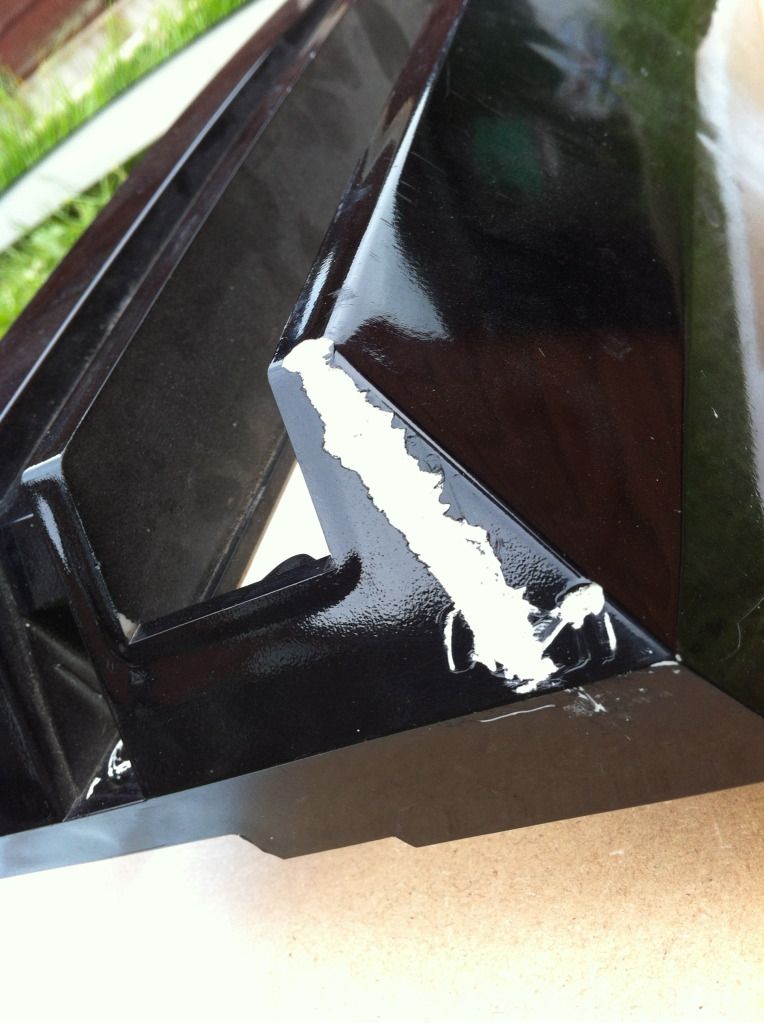

Also did the same with the scratch on the upper plastic…

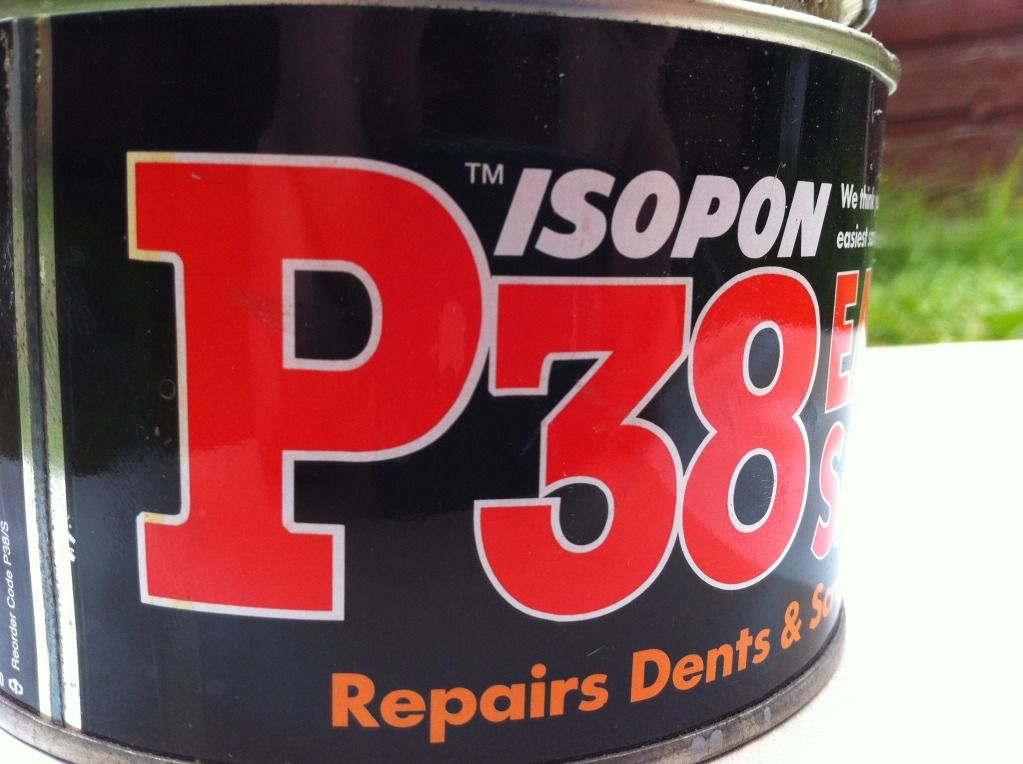

Then, using some of this…

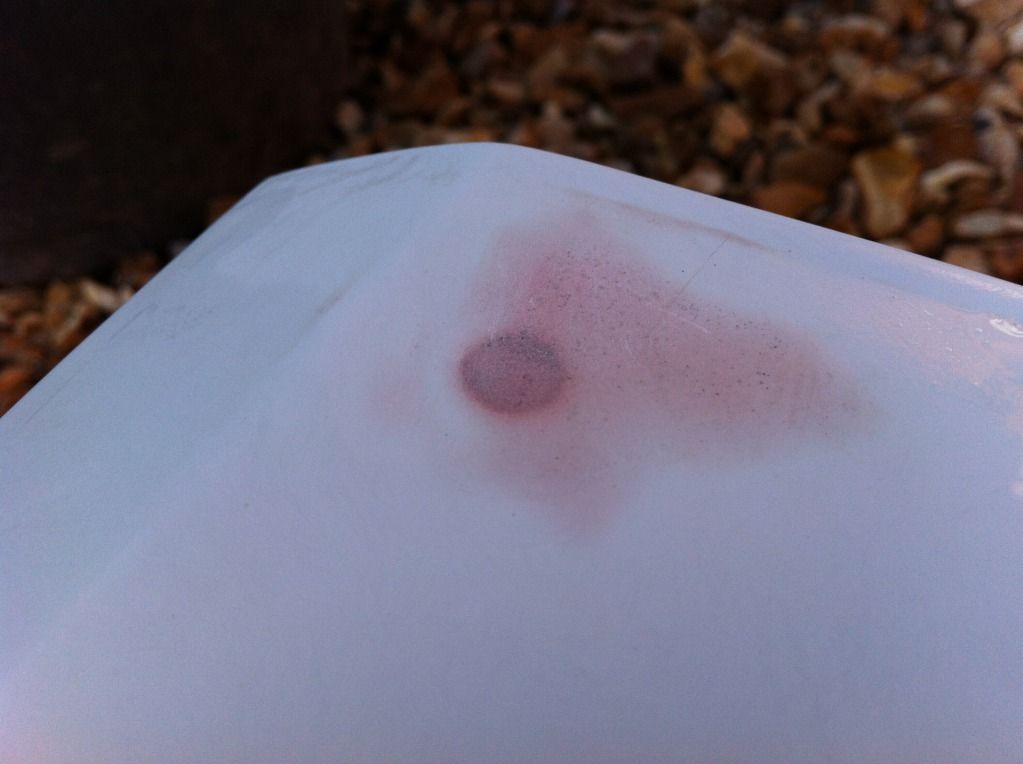

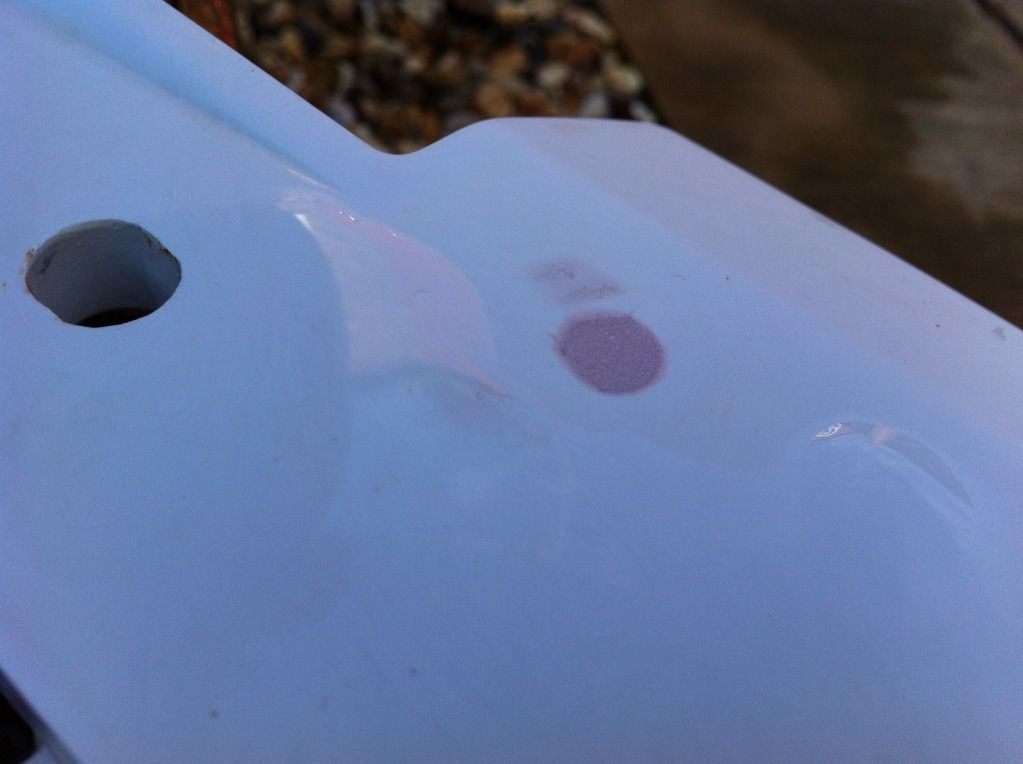

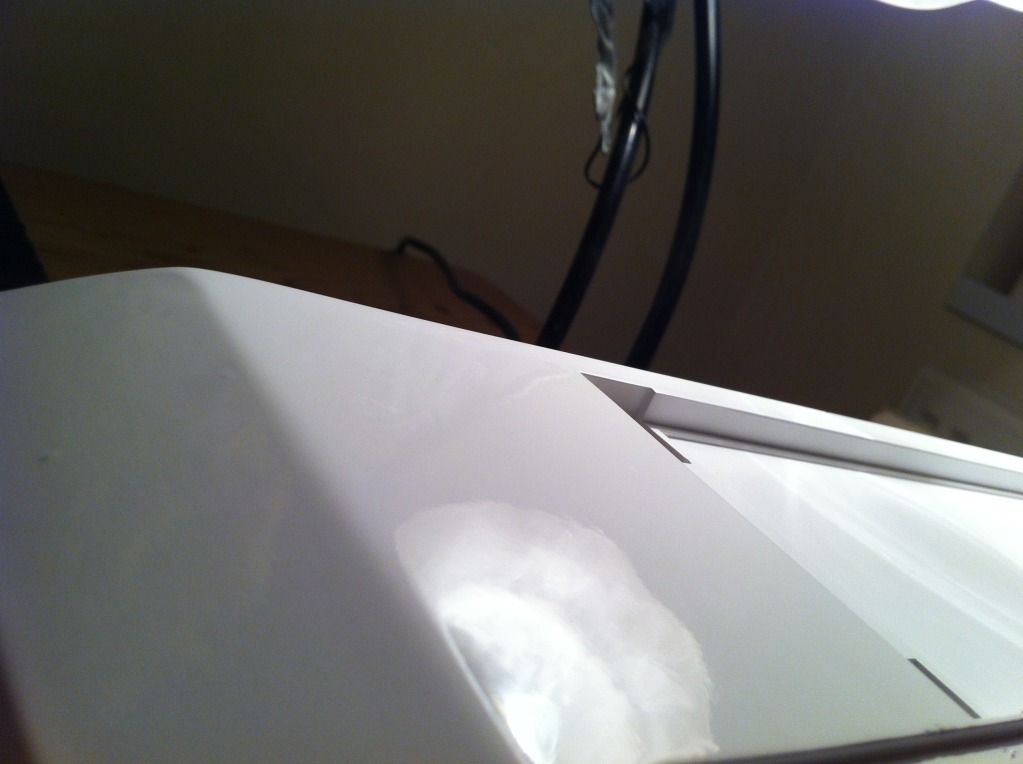

I filled, waited for it to be dry and sanded the surface super flat using a variety of wet and dry sandpapers until the surface was ultra smooth. No pics of the process as its quick work with the filler as drys very quick. But the finished result is great…

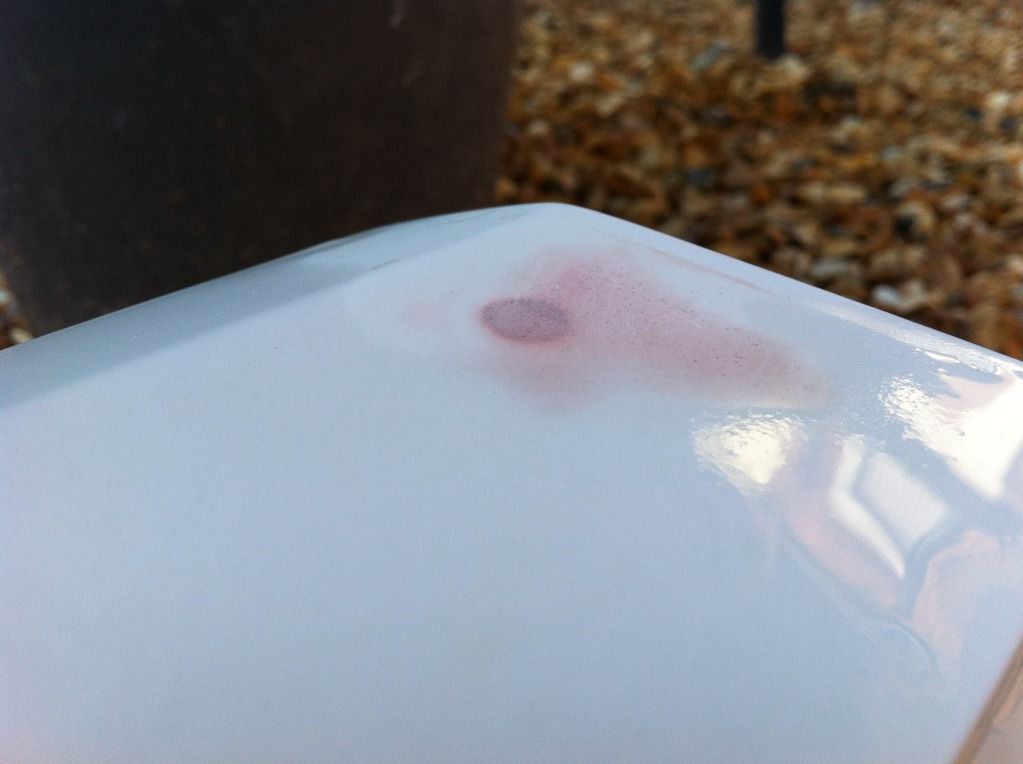

Other side done…

Ready for its first plastic primer coat…
LOL Cats... stupid cats
User avatar
tetsujin
Hello, I say
Posts: 1949
Joined: September 8th, 2008, 4:33 pm
Location: Cheshire
eBay: kukki_86
Initials: AC.

Re: Naomi Sitdown - JAMMA converted

Post by tetsujin »

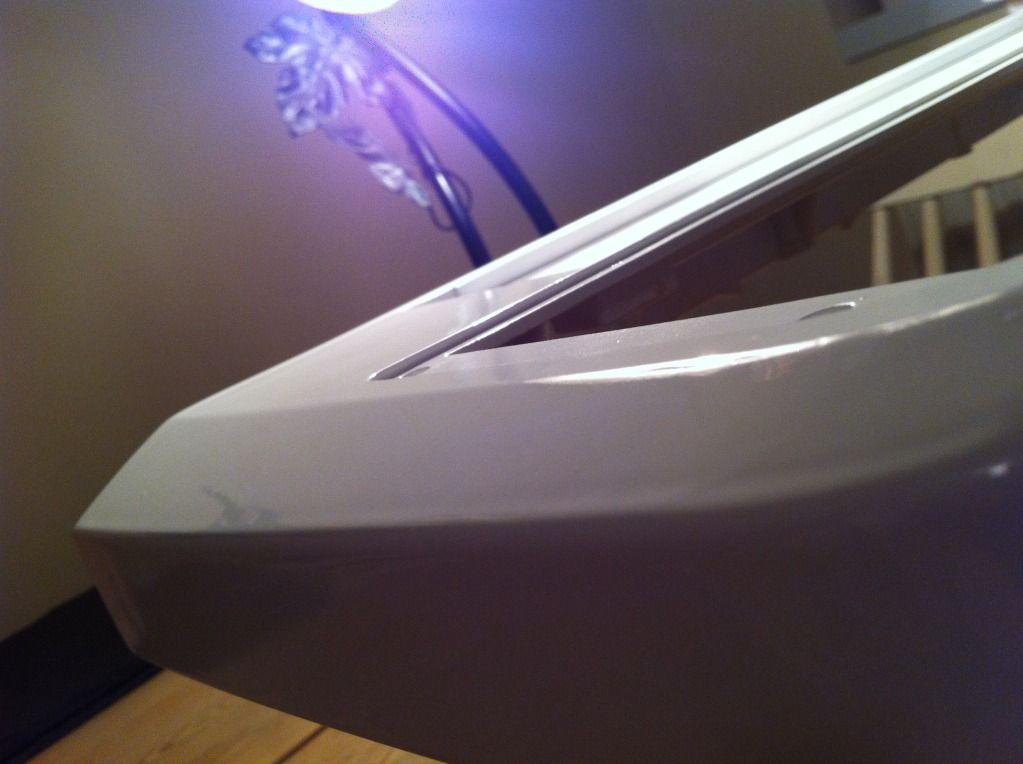

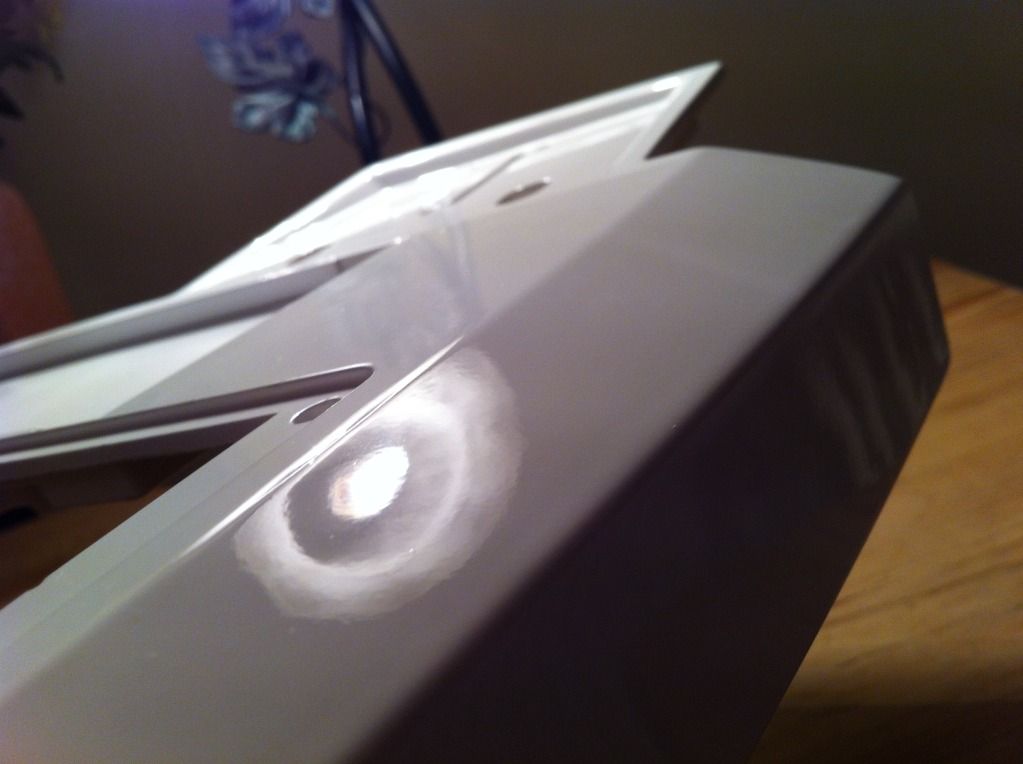

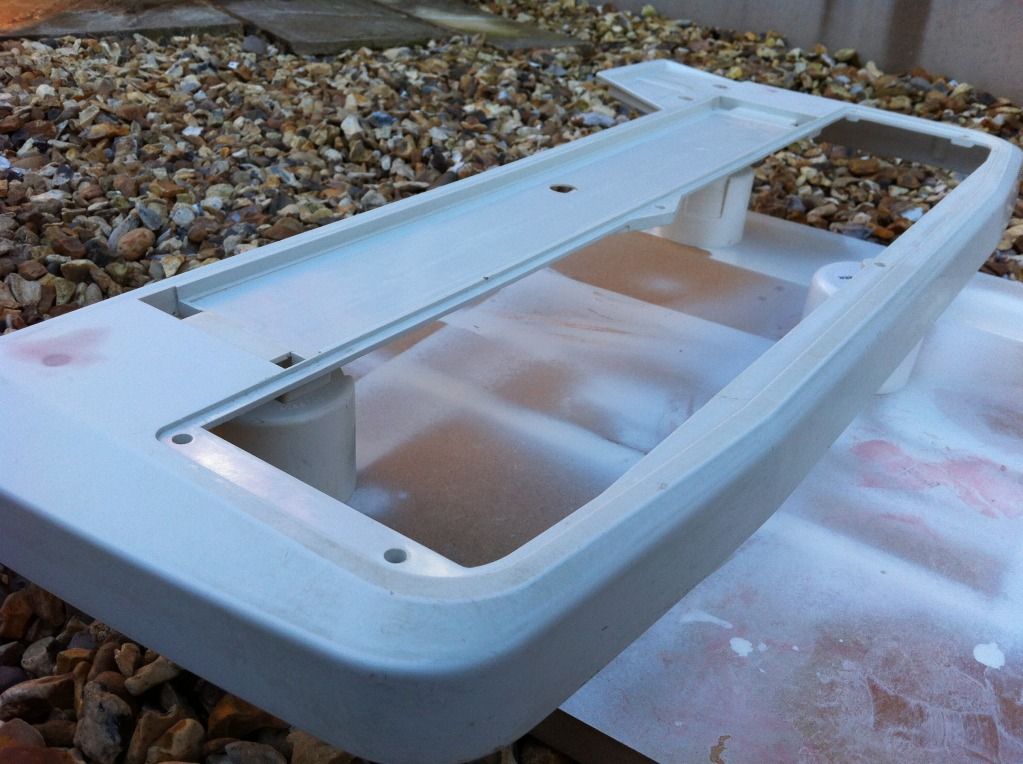

Painted the control panel surround last night. Nice and shiney. Just needs to be polished once its dried hard.

LOL Cats... stupid cats
User avatar
crunchywasp
stompin' an' jumpin'
Posts: 8104
Joined: February 10th, 2012, 2:51 pm
Location: Northern Ireland
eBay: crunchywasp
Initials: MAK

Re: Naomi Sitdown - JAMMA converted

Post by crunchywasp »

:clap: Excellent job! Looks ace :awe:
User avatar
sombetzki
Posts: 471
Joined: May 11th, 2010, 10:29 am
Location: The Netherlands
Initials: AAS

Re: Naomi Sitdown - JAMMA converted

Post by sombetzki »

:awe: :awe: :awe: Nicely done!
Follow me!
User avatar
jase
Posts: 692
Joined: September 14th, 2008, 3:18 pm
Location:

Re: Naomi Sitdown - JAMMA converted

Post by jase »

Awesome work! I'm really enjoying this thread and seeing how its progressing. :)

I really like Naomi's, great cabs to work on and once they've been cleaned up I think they look awesome. :awe:
User avatar
instant_classic
Actually Loves Take That
Posts: 980
Joined: February 10th, 2009, 9:47 pm
Location: Wales
Initials: DAF

Re: Naomi Sitdown - JAMMA converted

Post by instant_classic »

Looks great so far, great work being done :D
User avatar
tetsujin
Hello, I say
Posts: 1949
Joined: September 8th, 2008, 4:33 pm
Location: Cheshire
eBay: kukki_86
Initials: AC.

Re: Naomi Sitdown - JAMMA converted

Post by tetsujin »

Thanks lads :)

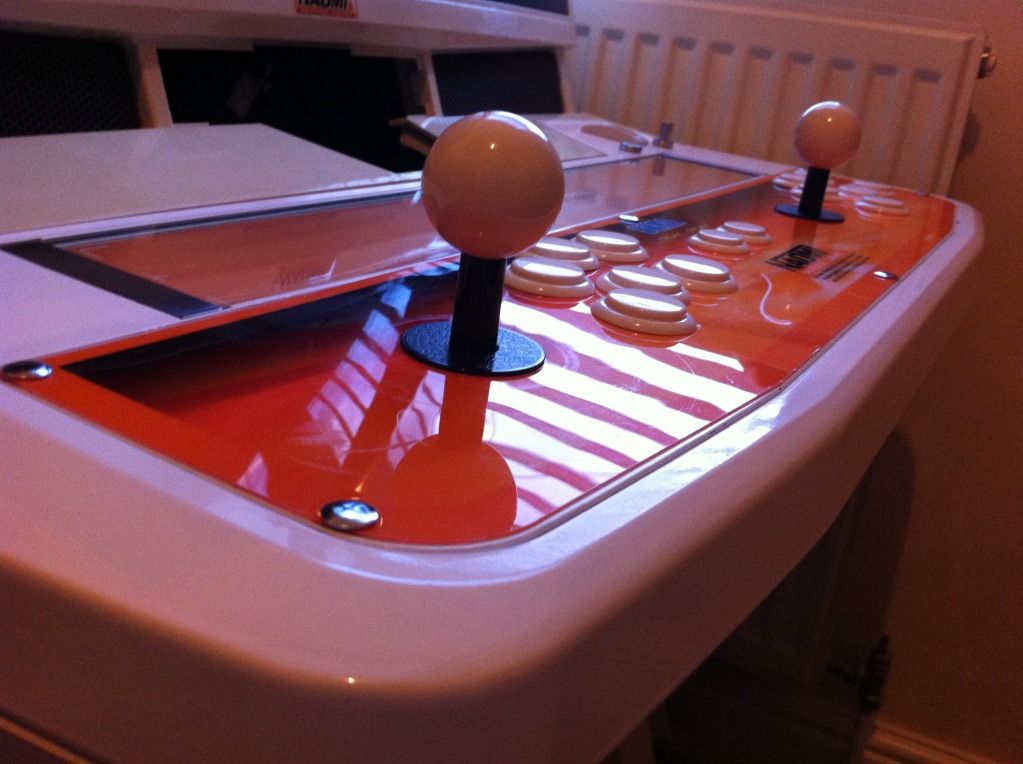

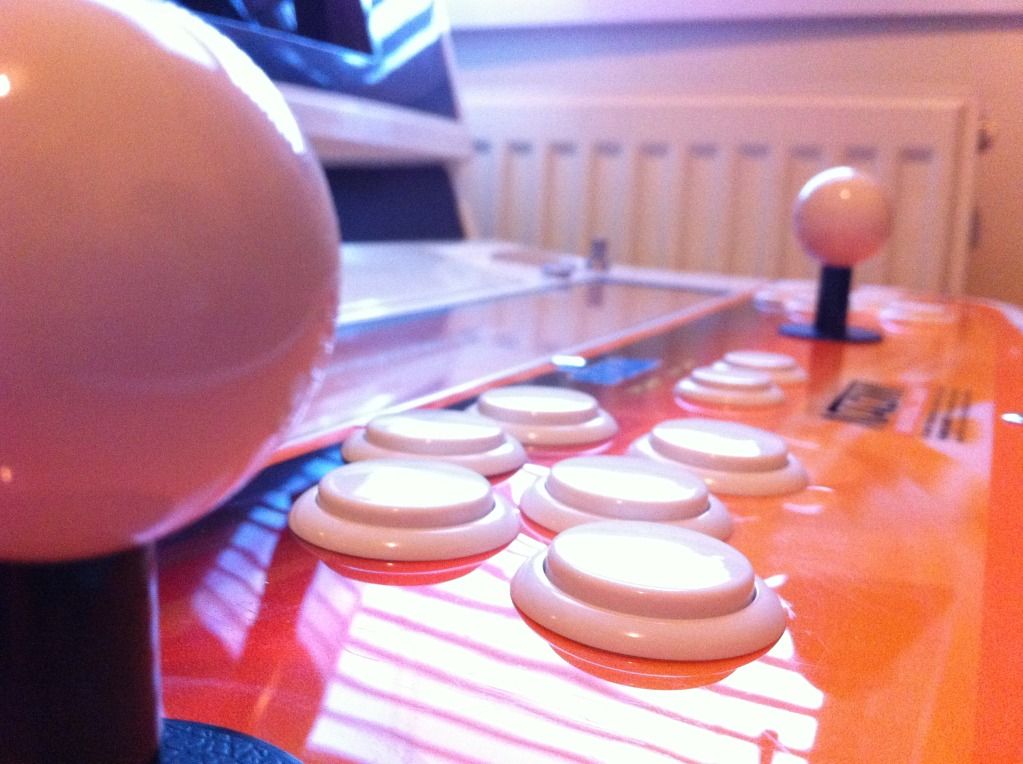

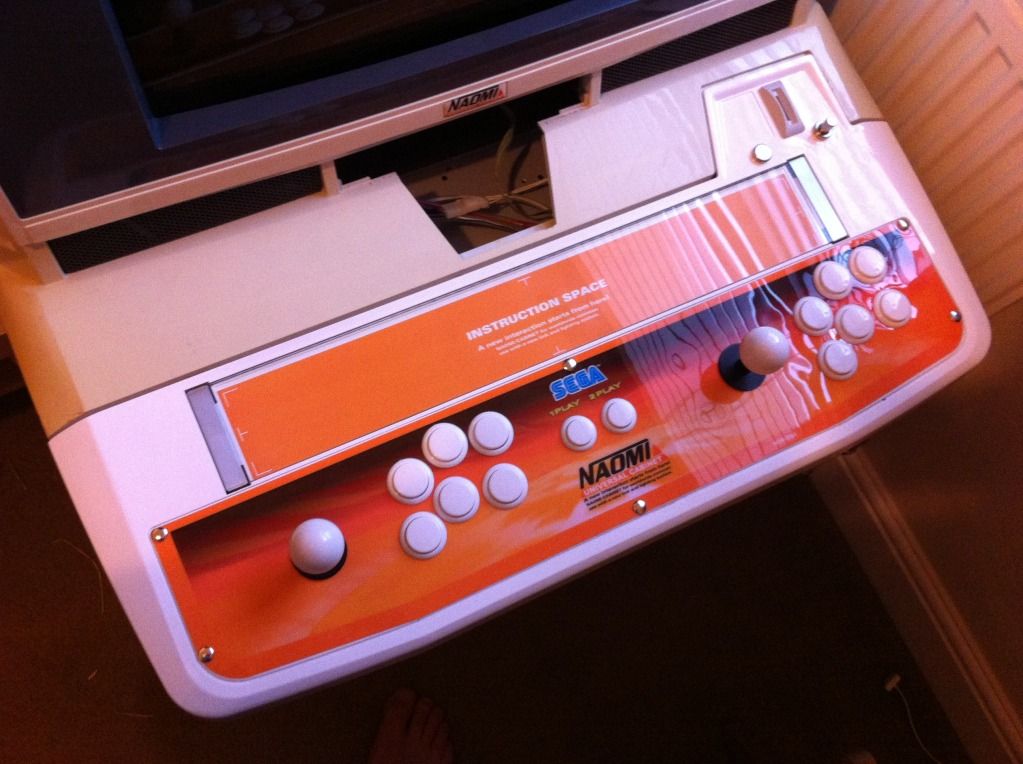

Little update, fitted all the gubbins on the painted control panel.

Ignore the iphone pics and the dust/dirt I never wiped off before pics! :)

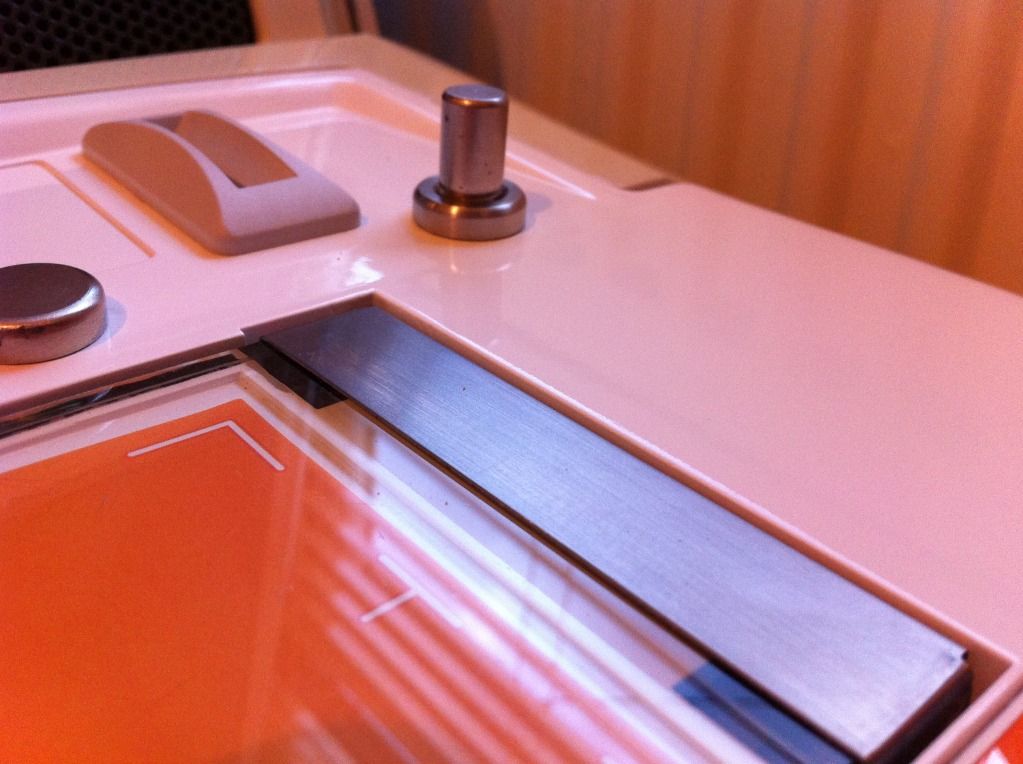

Sanded the metal parts as they where all marked so this make them look new...
LOL Cats... stupid cats
User avatar
sombetzki
Posts: 471
Joined: May 11th, 2010, 10:29 am
Location: The Netherlands
Initials: AAS

Re: Naomi Sitdown - JAMMA converted

Post by sombetzki »

:awe: :awe: :awe:
The problem with all these Naomi restoration threads is, that mine look uglier and uglier...

But yours is looking better and better! :thumbup:
Follow me!
User avatar
tetsujin
Hello, I say
Posts: 1949
Joined: September 8th, 2008, 4:33 pm
Location: Cheshire
eBay: kukki_86
Initials: AC.

Re: Naomi Sitdown - JAMMA converted

Post by tetsujin »

If you know me, I always sell things after I do them up as I find something else, so you could have this one! :D haha

Also, Anyone have a spare Net City 50/100y insert coin sticker (original).

Asked Andygeezer but no reply.

:)
LOL Cats... stupid cats
User avatar
sombetzki
Posts: 471
Joined: May 11th, 2010, 10:29 am
Location: The Netherlands
Initials: AAS

Re: Naomi Sitdown - JAMMA converted

Post by sombetzki »

Well, we could trade cabs :awe: Then you would have a new project, and I would have an almost new machine 8-)
