NaoPi - a Raspberry Pi as Naomi loader

Post by Paolo63 »

Hi all, NaoPi is a minimal linux distribution for Raspberry Pi which only purpose is to load Naomi games.
I've made it just to learn something new but I hope it will interest you.

It's usage I think it's easier and cheaper than a typical compact flash adapter.

First you have to put the NaoPi image on an SD card, the games on an USB memory stick, and both in a Raspberry Pi model B.

Then you connect the Raspberry Pi to the properly configured Net Dimm Board via an Ethernet cable and finally you switch on everything.

I've naturally tested it in my Naomi installation but I'd like a lot to have others trying it in different configurations. Is there someone wanting to give it a try, please ?

I've put all the stuff, image and instructions, here: http://www.e-venturi.com/jamma/?page_id=1073

Thanks in advance

Paolo
User avatar
Spectre
By Spectre
Posts: 1713
Joined: January 22nd, 2009, 5:42 pm
Location: Suffolk, UK
eBay: spectre-uk
Initials: JIM

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by Spectre »

Fantastic idea, how exactly does this work? I.e. will it load a given image by default, or do you need a monitor connected to the Pi to select one etc
joeks
Posts: 183
Joined: January 8th, 2009, 6:57 pm
Location: The Netherlands
eBay: barrybuise
Initials: BAJ
Contact:

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by joeks »

I have no experience with a Raspberry Pi yet, but if this thing can automatically netboot Mario Kart GP to my Triforce I would be very interested!
Paolo63
Please Continue...
Posts: 73
Joined: March 8th, 2014, 5:10 pm
Location: Italy

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by Paolo63 »

Hi, thanks.
As I've wrote on that link the basic idea is to have it super simple, i.e. only a Raspberry Pi. So in this minimal form the game loaded is the first one, in alphabetical order, present on the usb memory stick. If you want to load another game you make it to be the first, for instance prepending 000 to the filename.
But the "real hackers" can build a super simple circuit with a dip switch to select what game to load.
I could also use a typical buttons and lcd shield but I don't want people have to spend more than for a Raspberry Pi
Attaching a monitor and a keyboard you can decide what game to load, but then is simpler to rename the files on the usb as i wrote.

About the Triforce. I'm using the great triforcetools.py behind NaoPi so, probably it will work but I can't test it.

I've a Triforce type 3 too but I need to know from you who seems to have one, if you can now netbooting it using a computer... I need to know how do you do (using the python scripts or via transfergame ?) and expecially what firmware versions are reported on the system info menu... please...

Paolo
User avatar
geotrig
Potato!
Posts: 6810
Joined: December 5th, 2008, 1:14 pm
Location: ._.
eBay: ._.

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by geotrig »

very nice simple solution

<trk>:I remember catching a big fat one and my friend said "throw it back in, that one already tastes like wood"
Paolo63
Please Continue...
Posts: 73
Joined: March 8th, 2014, 5:10 pm
Location: Italy

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by Paolo63 »

geotrig wrote:very nice simple solution
That's it ! :) Thanks.... now I simply need someone reporting it's working in his Naomi too :D
User avatar
Stompp
Posts: 773
Joined: July 10th, 2012, 10:58 am
Location: Stockholm, Sweden
eBay: uridium
Initials: DAD
Contact:

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by Stompp »

Cool! I've been working on a similar solution but had to shelve the project due to other projects :(
Paolo63
Please Continue...
Posts: 73
Joined: March 8th, 2014, 5:10 pm
Location: Italy

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by Paolo63 »

Ehehe, we are all on the same boat... but luckily I broke a leg a couple weeks ago :D so i've found the time to work on it... too many great projects and no free time...

thanks... and if you can please try it

Paolo
User avatar
emphatic
Breastfeeds when required
Posts: 6230
Joined: April 7th, 2009, 4:14 pm
Location: Alingsås, Sweden
eBay: jorgen_sjolander
Initials: JOR

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by emphatic »

Very cool stuff!
RoZioN
Posts: 150
Joined: November 21st, 2011, 12:54 pm
Location: Sweden
Initials: ASH

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by RoZioN »

Finally a cheap easy solution! Will buy a rasberry pi tonight! Thanks for sharing!
Paolo63
Please Continue...
Posts: 73
Joined: March 8th, 2014, 5:10 pm
Location: Italy

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by Paolo63 »

Thanks, hope you'll report here... hope it works, ther'is so much people starting to try....
User avatar
Spectre
By Spectre
Posts: 1713
Joined: January 22nd, 2009, 5:42 pm
Location: Suffolk, UK
eBay: spectre-uk
Initials: JIM

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by Spectre »

I'll look into this too, particularly if I can easily splice off the power for the Pi from my cab 8-)
Paolo63
Please Continue...
Posts: 73
Joined: March 8th, 2014, 5:10 pm
Location: Italy

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by Paolo63 »

Sure, it's a regulated +5 so I think there will be no problem
RoZioN
Posts: 150
Joined: November 21st, 2011, 12:54 pm
Location: Sweden
Initials: ASH

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by RoZioN »

I hope so too. Im pretty bad with linux overall. but all I need to to is to transfer the distribution files to the SDcard? Which fileformat should the SDcard be in? I bought a regular CAT5 straight cable, that should work since you have a virtual router in the dist?
Paolo63
Please Continue...
Posts: 73
Joined: March 8th, 2014, 5:10 pm
Location: Italy

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by Paolo63 »

You don't have to worry about the sd formatting, it will be done automatically when you'll write the image in it following the instructions (or the instruction on how to write another image on an sd for a raspi). There is no linux involved for the user, here :)
Naturally it's linux inside, but you don't have to mess with it :)
As the info on my site say you've only to transfer the distribution on the sd card and copy your games (zeroed and with a filename ending with a lowercase .bin) on the usb memory stick, in a folder called naopi.
About the kind of ethernet cable there should be no problem if it's straight or cross. The raspi shoul be autosensing and adapt to whatever you use.
I've tried to make this stuff the most straightforward i could :)
joeks
Posts: 183
Joined: January 8th, 2009, 6:57 pm
Location: The Netherlands
eBay: barrybuise
Initials: BAJ
Contact:

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by joeks »

Sounds absolutely perfect for my needs Paolo!

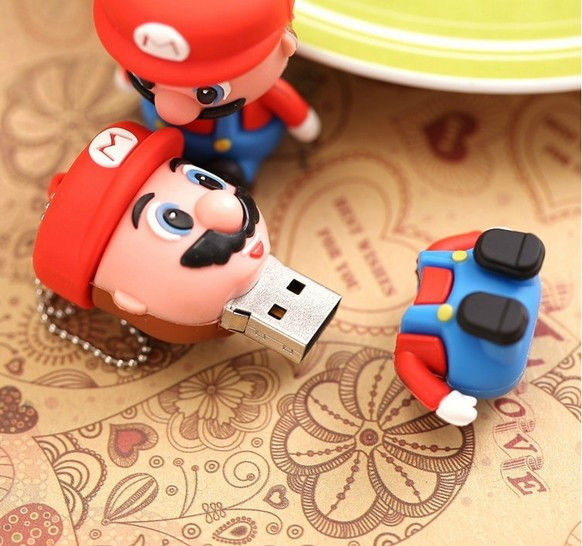

I would put only Mario Kart GP 2 (Triforce Type 3) on this usb-stick, and just wait for it to boot :)

Normally I use a laptop, cross-cable and transfergame.exe to load my games (Naomi, Triforce and Chihiro).
Have to buy a Raspberry and try your sofware!
User avatar
FrancoB
J+ member of the year finalist!
Posts: 4568
Joined: June 8th, 2009, 10:42 pm
Location: Buckinghamshire
eBay: francosquashking
Initials: FRN

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by FrancoB »

Cool stuff :)

If I didn't already have a CF setup I would definitely give this a go.
Paolo63
Please Continue...
Posts: 73
Joined: March 8th, 2014, 5:10 pm
Location: Italy

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by Paolo63 »

Great ! That's the right usb memory to use :D
Can you please tell me all the data on the system info menu of your triforce type 3 ?
I've one but I can't netboot it and I'd like to know if it's a firmware problem as i think.
Thanks
joeks
Posts: 183
Joined: January 8th, 2009, 6:57 pm
Location: The Netherlands
eBay: barrybuise
Initials: BAJ
Contact:

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by joeks »

@Paolo, I will check the firmware version on my Triforce tonight when I get home.

PS. Raspberry Pi and usb-stick ordered! :) Looking forward to testing it.
RoZioN
Posts: 150
Joined: November 21st, 2011, 12:54 pm
Location: Sweden
Initials: ASH

Re: NaoPi - a Raspberry Pi as Naomi loader

Post by RoZioN »

I used applepi to transfer the img to the SD, but had to rename the file as .img

did I mess something up changing the file ending?
